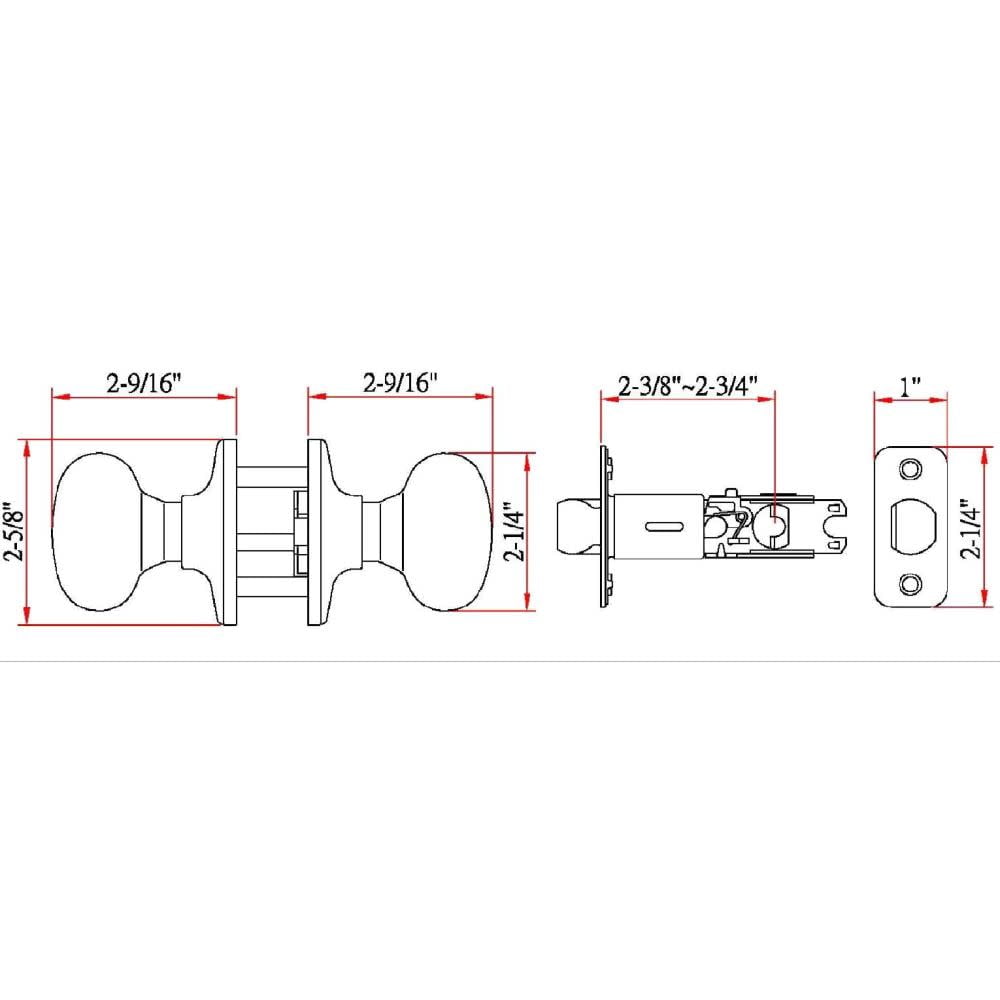

The Design House 753301 Cambridge 2-Way Latch Passage Door Knob is finished in satin nickel and is best suited for bedrooms or doors that do not lock. This knob fits the two most common backsets in the U.S. (2-3/4 inches and 2-3/8 inches). The 1/2 inches latch bolt is plated in nickel and does not budge once in place. This knob does not include keyed cylinders. Use this knob on standard 1-3/8 inches and 1-3/4 inches thick doors. This product has a 1 inch by 2-1/4 inches radius corner faceplate. If you are preparing your door for installation, the cross bore should be 2-1/8 inches in diameter and the edge bore should be 1 inch in diameter. This product is ANSI Grade-3 certified and rated for residential security.
| Doorknob type | Passage Door Knob |
|---|---|
| Lock type | Key Lock |
| Finish | Satin Nickel |
| Material | Brass |
| Color | Satin Nickel |
| Compatibility | 1-3/8 inches and 1-3/4 inches thick doors |
| Orientation | Left |
| Backset size | 2-3/4 in |
| Brand | Design House |
| Mount type | Door |
| Ansi class | Grade-3 |
| Product line | Cambridge Series |
| Backplate shape | 1 inch by 2-1/4 inches radius corner faceplate |
| Items included | faceplate, mounting hardware, and instructions |
| Accessories | Yes |
| Manufacturer | Design House |
| Assembled product weight | 1.03 lb |
| Color category | Silver |
